Product Details
Place of Origin: Jiangsu
Brand Name: Zhijia
Certification: API, ce, RoHS, BIS, tisi, JIS, GS, ISO9001
Model Number: SSAW Carbon steel pipe
Payment & Shipping Terms
Minimum Order Quantity: 5Tons
Price: USD 621 - 992 Per Ton
Packaging Details: packed into bundles or wooden box or as the customer required
Delivery Time: 10-15days
Payment Terms: L/C, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500000 Ton/Tons per Month
Pipe Type: |
SSAW Pipe,Spirally Submerged Arc Welding Pipe ,SAWH Pipe, Sprial Steel Pipe,Piling Structure SSAW Pipe ; Large Diameter Spiral Welded Steel Pipe |
Specification: |
Outer Diameter:219mm-4064mm Wall Thickness: 3.2mm-40mm |
LENGTH: |
5.8/6/11.8/12/18/32meters |
Standard & Grade: |
ASTM A53: Gr.A, Gr.B;API 5L:Gr.A,Gr.B,X42,X46 |
End: |
Square Ends/Plain Ends (straight Cut, Saw Cut, Torch Cut),Beveled/Threaded Ends |
Surface: |
Black Painting/Oil Painting/Anti-Rust Oil/Anti-Corrosive Coating |
Application: |
Oil And Gas Pipeline, Water Transmission, Liquid Transportation, Building Construction, Steel Structure Construction, Offshore/Onshore Construction, Piling Works, Electricity, Heating Power And Etc |
Test: |
Chemical Component Analysis, Mechanical Properties (Ultimate Tensile Strength, Yield Strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
Mill Test Certificate: |
EN 10204/3.1/3.2 |
Third Party Inspection: |
SGS, BV, Lloyds Etc. |
Pipe Type: |
SSAW Pipe,Spirally Submerged Arc Welding Pipe ,SAWH Pipe, Sprial Steel Pipe,Piling Structure SSAW Pipe ; Large Diameter Spiral Welded Steel Pipe |
Specification: |
Outer Diameter:219mm-4064mm Wall Thickness: 3.2mm-40mm |
LENGTH: |
5.8/6/11.8/12/18/32meters |
Standard & Grade: |
ASTM A53: Gr.A, Gr.B;API 5L:Gr.A,Gr.B,X42,X46 |
End: |
Square Ends/Plain Ends (straight Cut, Saw Cut, Torch Cut),Beveled/Threaded Ends |
Surface: |
Black Painting/Oil Painting/Anti-Rust Oil/Anti-Corrosive Coating |
Application: |
Oil And Gas Pipeline, Water Transmission, Liquid Transportation, Building Construction, Steel Structure Construction, Offshore/Onshore Construction, Piling Works, Electricity, Heating Power And Etc |
Test: |
Chemical Component Analysis, Mechanical Properties (Ultimate Tensile Strength, Yield Strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
Mill Test Certificate: |
EN 10204/3.1/3.2 |
Third Party Inspection: |
SGS, BV, Lloyds Etc. |

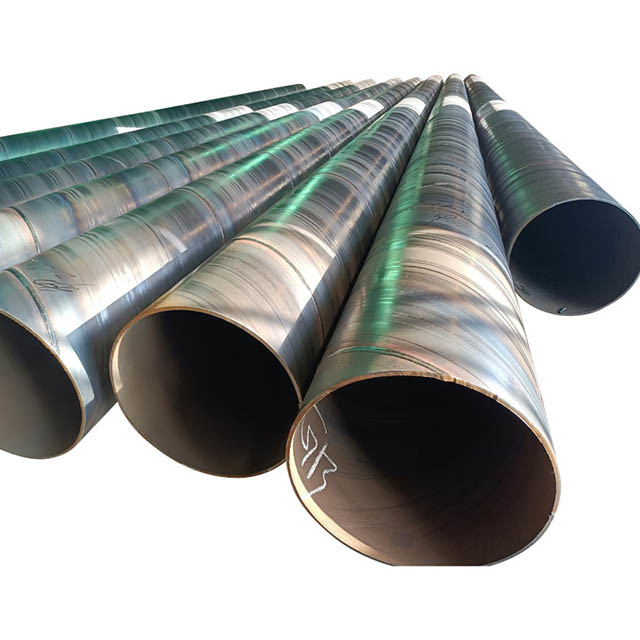

SSAW Carbon steel pipe large diameter carbon spiral welded steel pipe for water oil and gas
Usage: Used for Oil and gas pipeline, water transmission, liquid transportation, Building construction, Steel structure construction, Offshore/Onshore construction, Piling works, Electricity, Heating power and etc
Sizes:
Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
| Standard | Grade | Chemical Composition(max)% | Mechanical Properties(min) | |||||
| C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | ||
| API 5L PSL1 | A | 0.22 | - | 0.90 | 0.030 | 0.030 | 335 | 335 |
| B | 0.26 | - | 1.20 | 0.030 | 0.030 | 415 | 415 | |
| X42 | 0.26 | - | 1.30 | 0.030 | 0.030 | 415 | 415 | |
| X46 | 0.26 | - | 1.40 | 0.030 | 0.030 | 435 | 435 | |
| X52 | 0.26 | - | 1.40 | 0.030 | 0.030 | 460 | 460 | |
| X56 | 0.26 | - | 1.40 | 0.030 | 0.030 | 490 | 490 | |
| X60 | 0.26 | - | 1.40 | 0.030 | 0.030 | 520 | 520 | |
| X65 | 0.26 | - | 1.45 | 0.030 | 0.030 | 535 | 535 | |
| X70 | 0.26 | - | 1.65 | 0.030 | 0.030 | 570 | 570 | |
| API 5L PSL2 | B | 0.22 | 0.45 | 1.20 | 0.025 | 0.015 | 415 | 415 |
| X42 | 0.22 | 0.45 | 1.30 | 0.025 | 0.015 | 415 | 415 | |
| X46 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 435 | 435 | |
| X52 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 460 | 460 | |
| X56 | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | 490 | 490 | |
| X60 | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | 520 | 520 | |
| X65 | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | 535 | 535 | |
| X70 | 0.12 | 0.45 | 1.70 | 0.025 | 0.015 | 570 | 570 | |
| X80 | 0.12 | 0.45 | 1.85 | 0.025 | 0.015 | 625 | 625 | |
| ASTM A53 | A | 0.25 | 0.10 | 0.95 | 0.050 | 0.045 | 330 | 330 |
| B | 0.30 | 0.10 | 1.20 | 0.050 | 0.045 | 415 | 415 | |
| ASTM A252 | 1 | - | - | - | 0.050 | - | 345 | 345 |
| 2 | - | - | - | 0.050 | - | 414 | 414 | |
| 3 | - | - | - | 0.050 | - | 455 | 455 | |
| EN10217-1 | P195TR1 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 |
| P195TR2 | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 | |
| P235TR1 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
| P235TR2 | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
| P265TR1 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
| P265TR2 | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
| EN10217-2 | P195GH | 0.13 | 0.35 | 0.70 | 0.025 | 0.020 | 320 | 320 |
| P235GH | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 | |
| P265GH | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
| EN10217-5 | P235GH | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 360 | 360 |
| P265GH | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 410 | 410 | |
| EN10219-1 | S235JRH | 0.17 | - | 1.40 | 0.040 | 0.040 | 360 | 360 |
| S275JOH | 0.20 | - | 1.50 | 0.035 | 0.035 | 410 | 410 | |
| S275J2H | 0.20 | - | 1.50 | 0.030 | 0.030 | 410 | 410 | |
| S355JOH | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 470 | 470 | |
| S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | 470 | 470 | |
| S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | 470 | 470 | |
If you have any inquiries and questions, please contact at any time. Thanks in advance. Welcome!
