Highlight:

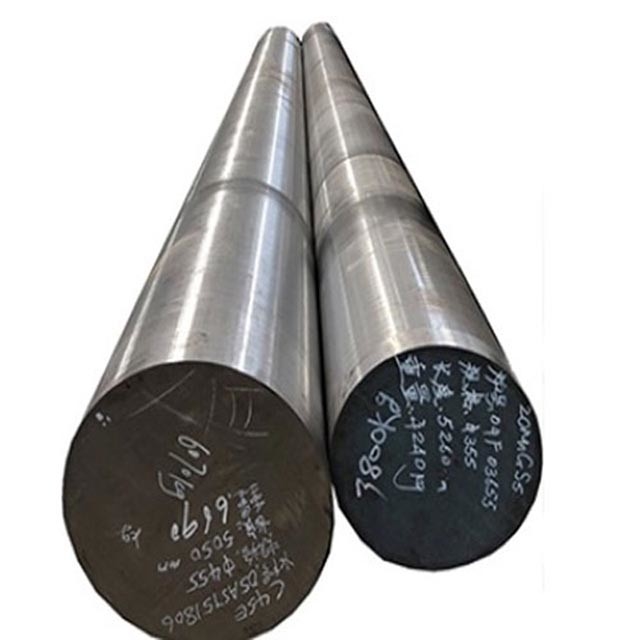

SAE 1035 Carbon Steel Bright Bar
, 42CrMo4 Carbon Steel Bright Bar
, Ss41 Hot Rolled Round Bar
Model Number: |
1060 C45 Ck45 1095 1020 A36 Q235 Sae 1016 |
Application: |
Structural Steel Bar, Tool Steel Bar, Die Steel Bar, Construction, Mechanical Parts |
Standard: |
ASTM, DIN, AISI, GB, JIS |
Special Use: |
Free Cutting Steel, Mold Steel, Valve Steels |
Technique: |
Hot Rolled, Cold Drawn, Forged |
Length: |
1-12m, 3.5m-6m Or As Customized, 10100mm, 4/5.8/6 Meters Or As Required, 3000-12000mm Or As Required |
Shape: |
Round, Flat Plate, High-quality Round Bar, Round Bars/Rod Bars |
Diameter: |
18mm-500mm, 6mm---600mm, 320mm, 6-900mm |
SAE 1035 Carbon Steel Bright Bar Hot Rolled Round 42CrMo4 Ss41
SAE 1035 Round Steel Round Bars Hot Rolled Carbon Steel 42crmo4 Ss41
Grade 1035 is a standard carbon steel grade for 1035 steel bar as well as wire rod.
1035 round bar may also appear as:
SAE (Society of Automotive Engineers)
SAE 1035 steel bar
AISI (American Iron and Steel Institute)
AISI 1035 round bar
1035 steel bar is most commonly characterized as a medium carbon grade, and as such is a popular “work horse” grade of steel.
1035 steel bar is often supplied in hot rolled, cold drawn, turned & polished, annealed and or coated conditions; both in bar lengths or packaged into wire rod.
1035 steel bar is a relatively low cost, medium strength steel and is common in a wide variety of general purpose applications. 1035 round bar is higher in strength and hardness than low carbon steel and is often used for small parts of moderate strength such as bolts, nuts, studs and parts which are headed or upset.
A common length for 1035 steel bar is 20′, although many mills have the capacity to produce a variety of lengths depending on the diameter and also the end application. 1035 may also be supplied in wire rod form. Typical wire rod size is around 4,000 #. In coil form, it may be packed into a tightly banded coil or can be loaded onto a carrier depending on the customer’s preference
SAE 1035 Carbon Steel Round Bars Chemical Composition
Grade |
Chemical composition %: |
| C |
Si |
Mn |
S |
P |
Cr |
Ni |
Cu |
| C35 |
0.17-0.24 |
0.17-0.37 |
0.7-1.00 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
≤0.25 |
SAE 1035 Carbon Steel Round Bar Physical Properties
| Physical Properties |
Metric |
Imperial |
| Density |
7.85 g/cm3 |
0.284 lb/in3 |
SAE 1035 Carbon Steel Round Bar Mechanical Properties
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation in 100-150 mm(%) |
Reduction in Area |
Hardness |
| 1020 |
≥380 |
≥210 |
≥25 |
≥50 |
≤111HB |
Testing and Packaging of 1035 Steel
Testing and packaging are considered one of the most critical steps of the manufacturing process.
We do several tests and inspections to check the quality of 1035 steel round bar. Tests done depend on the requirement of the users. Those quality tests can include chemical composition test, physical test, visual inspection, macro and micro test, NDT test and ultrasonic test depending on the requirement of the customers. We can also arrange a third-party inspection if required. A test certificate is given for each consignment for the tests conducted.
At last, we bundle or pack the 1035 round bar to prevent damage at the time of transportation.
Typical Mechanical Properties of 1035 Steel Round Bars
UTS in N/mm2 , hot rolled or normalized, min.:540 (55 kg/mm2)
Elongation %, hot rolled or normalized, min: 20
UTS in N/mm2 , hardened and tempered, min. *:588 (60 kg/mm2)
Elongation %, hardened and tempered, min: 18
*(Limiting ruling section = 63mm)
Ordering Information for 1035 Steel Round Bars
| Grade |
SAE 1035 |
| Order |
Minimum order 3MT per size |
| Length |
a) 5 To 6 Meters
b) Custom Cut Length or multiple
|
| Round Diameter |
23.5 mm to 80 mm |
| Hexagon |
23.5mm to 52.5mm |
| Condition |
a) Hot Rolled
b) Bright Bar
c) Cold Drawn & Polished
|
Steel Grades equivalent to SAE 1035 Steel
| AMS 5080 |
ASTM A544 (1035) |
MIL S-19434 |
AFNOR CC 35 |
B.S. 080 A 37 |
| AMS 5082 |
ASTM A545 (1035) |
MIL S-3289 |
DIN 1.0501 |
B.S. 080 M 36 |
| ASTM A29 (1035) |
ASTM A546 (1035) |
S35C |
UNI C 35 |
AMS 5080D |
| ASTM A510 (1035) |
ASTM A576 (1035) |
QQ S700 (C1035) |
SS 1550 |
AMS 5082A |
| ASTM A512 (1035) |
ASTM A682 (1035) |
SAE J1397 (1035) |
B.S. 060 A 35 |
ASTM A108 |
| ASTM A513 (1035) |
ASTM A827 |
SAE J403 (1035) |
B.S. 080 A 32 |
QQ S635 |
| ASTM A519 (1035) |
ASTM A830 |
SAE J412 (1035) |
B.S. 080 A 35
|
Applications
1035 round bar and wire rod may be used for cold heading / working into fasteners such as screws, bolts and nuts, machined into cold finished components, and/or hot or cold forged into a variety of parts. Depending on the application, it may be rolled into a wide range of diameters. By cold drawing 1035 round bar, it will increase the mechanical properties, improve the size tolerance and enhance the surface. In these conditions, 1035 steel bar may be used in a variety of tools, chain pins, sealing rings, nails, couplings, levers, studs, gears, bolts, rods, pins as well other numerous other types of parts.
